SIC-Diode

Location : Home  >  Products  >  SIC  >  SIC-Diode
Loading...
SL4D40120D 1200V/2*20A
Category : SIC-Diode
Hits : 107
Brief :
SIC碳化硅二极管

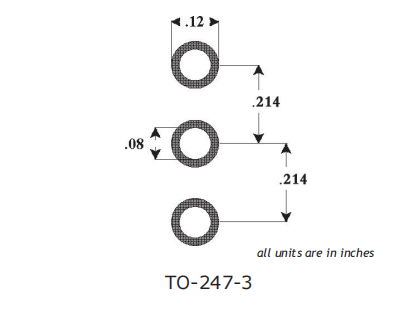

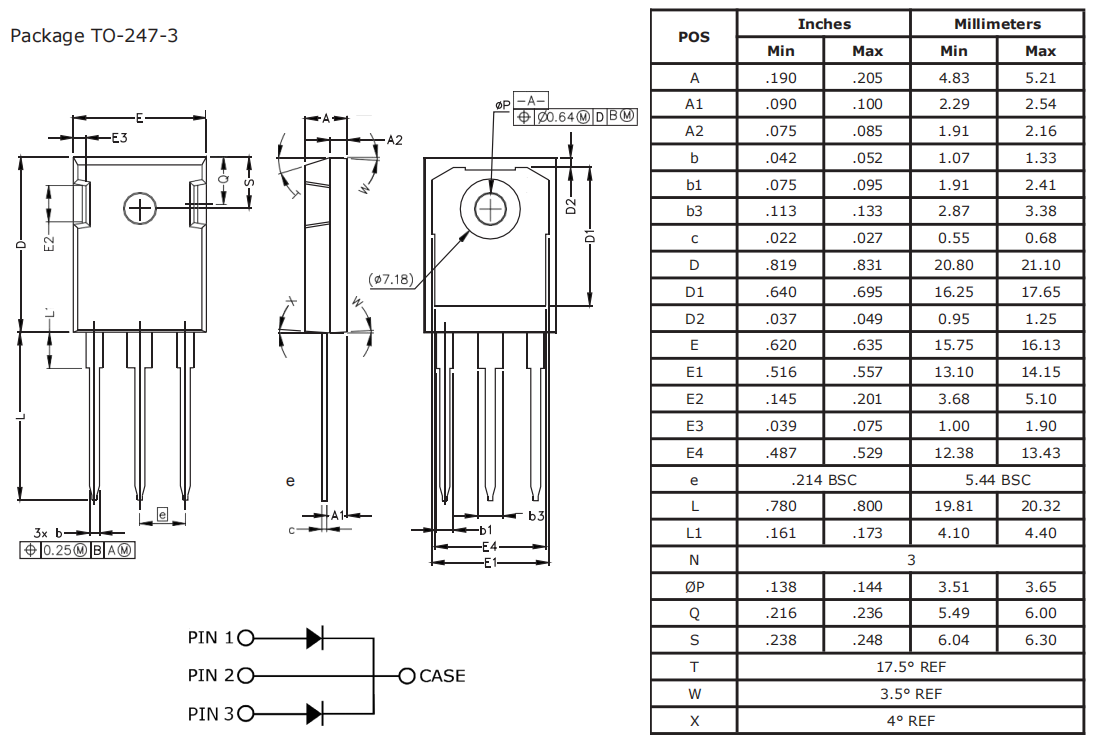

1200V/2*20A(150℃)/Vf=1.50V/TO-247-3L
  • Description
  • Inquiry
Features:
• 1.2kV Schottky Rectifier
• Zero Reverse Recovery Current
• High-Frequency Operation
• Temperature-Independent Switching
• Extremely Fast Switching

Benefits:
• Replace Bipolar with Unipolar Rectifiers
• Essentially No Switching Losses
• Higher Efficiency
• Reduction of Heat Sink Requirements
• Parallel Devices Without Thermal Runaway

Applications:
• Switch Mode Power Supplies (SMPS)
• Boost diodes in PFC or DC/DC stages
• Free Wheeling Diodes in Inverter stages
• AC/DC converters
